1.Baby Pull-ups Diaper Making Machine Program System
Servo driven, intelligent HMI touch screen man-machine interface
2. Tension System
Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice.
3. Driven System
Servo drive, digital size change, ensure run synchronously at full process.
4. Safety System
Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
5. Auto Pack System
Auto stacker and Packaging machine to be defined by customer need.
6. Web Guiding System
BST ,Germany/FIFE, USA
7.Baby Pull-ups Diaper Making Machine Customized Function Available

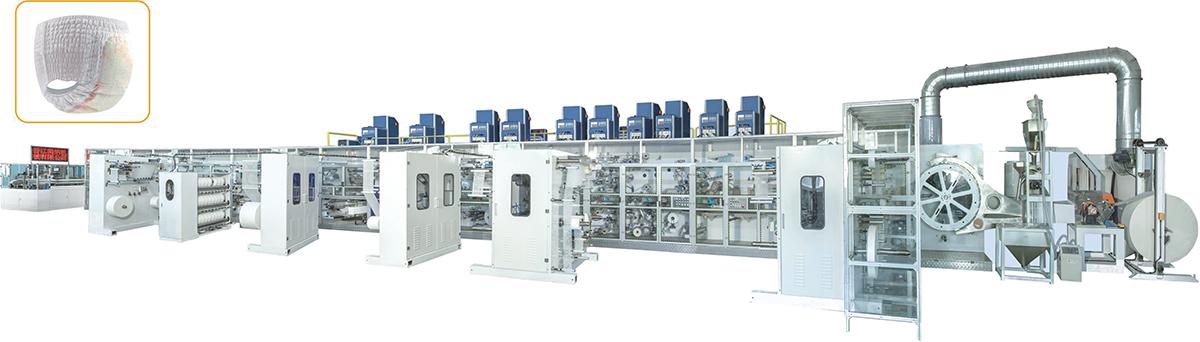

Pull-ups Baby Diaper Machine
|
Dimensions(L×W×H8) |
32m*1m*4m |
|
Design Speed: |
600ppm |
|
Stable Working Speed: |
500ppm |
|
Rejection Rate: |
≤3% |
|
Efficiency: |
≥85% |
|
Power Source: |
380V,50HZ |
|
Machine Capacity: |
320KW |
|
Air Pressure: |
0.6-0.8Mpa |
|
Machine Weight: |
80 tons |
Overhaul of Baby Pull-ups Diaper Making Machine
1. In the maintenance and repair procedures of baby diaper Making Machine, detailed regulations are made for the maintenance and repair of mechanical equipment, and the daily maintenance, large, medium and small maintenance cycles and monitoring contents are all clarified.
2. At present, most manufacturers use on-site technical management personnel to replace the maintenance work of baby diaper Machine, and technical personnel from relevant departments jointly discuss and make decisions based on the operation of the equipment, which greatly improves the scientific nature of the equipment maintenance plan.
Pull-ups Diaper Making Machine
| No. | Raw materials |
| 1 | Hydrophilic NW (Topsheet) |
| 2 | Hydrophobic NW (Legcuff) |
| 3 | Elastic for Legcuff |
| 4 | ADL |
| 5 | Fluff pulp |
| 6 | SAP |
| 7 | Upper tissue/NW |
| 8 | Lower tissue/NW |
| 9 | Pe film |
| 10 | NW for laminating |
| 11 | Waist inner NW |
| 12 | Waist outer NW |
| 13 | Elastic for waist |
| 14 | Construction glue |
| 15 | Elastic glue |
| 16 | Wetness indicator glue |

1. U-Shape Baby Pull-ups Diaper Machine Program System Servo driven, intelligent HMI touch screen man-machine interface 2. Driven System Servo drive, digital size change, ensure run synchronously...

Rejection rate: ≤3%, Product structure: Upper & lower tissue (or airlaid ),Cotton core (mix with SAP), Topsheet hydrophilic nonwoven, ADL nonwoven, Leak cuff hydrophobic nonwoven,3D core coating...

This is Pull Up Baby Diaper Machine in Iran, thisPull Up Baby Diaper Machine can produce M/L/XL/XXL sizes for the local market, design speed is 550ppm and ...

Full servo baby diaper machine in Bangladesh, this machine can produce four size, S/M/L/XL, stable speed for M size is 600ppm, this machine is wit...
