CLK350 is recorded as an automatic adult diaper line with servo drive, HMI control, buffer tension, automatic web guiding and digital size change. Maintenance should therefore follow symptoms through material, web, motion and downstream systems instead of treating every stop as a mechanical fault.
The table lists 350 ppm design speed and 250-300 ppm stable working speed. A separate sentence says 350 pcs/min stable for M size. The maintenance baseline should use the signed FAT speed and product recipe. Otherwise operators may chase a headline number and create repeated adjustment, web breaks or rejects that are not equipment failures.
| Observed symptom | Check first | Evidence to record |
|---|---|---|
| Web drifts laterally | Roll loading, guide sensor, actuator travel and tension balance | Material, guide position and point where drift begins |
| Core or tape registration moves | Recipe, servo phase, web tension and splice event | Sample sequence before and after the deviation |
| Rejects rise after size change | Correct tooling, recipe, material width and first-off approval | Changed components and retained samples |
| Frequent stop at stacking | Pack count, product fold, discharge path and downstream handshake | Alarm, stack condition and recovery action |
| Adhesive contamination | Application position, temperature setting, nozzle condition and cleaning state | Adhesive batch, affected station and cleaning result |
Inspect guards, emergency devices, visible web path, adhesive area and HMI alarms before threading or start-up.
Check guides, tension settings, cut and placement registration, then retain the first accepted sample.
Clean product-contact and adhesive areas, inspect wear points and document lubrication or replacement work.
Preserve the alarm and product evidence before resetting. Record cause, correction and verification run.
The source describes M, L and XL adult diapers and lists hydrophilic topsheet, hydrophobic leg-cuff nonwoven, ADL, fluff pulp, SAP, tissues, PE film, waist inner and outer nonwovens, waist elastic and three adhesive applications. Maintenance trials should use the approved material set because roll stiffness, dust, elastic behavior and adhesive condition affect the symptoms operators see.
Use the value accepted in FAT for the approved recipe. The source table says 250-300 ppm, while a legacy sentence says 350 ppm for M size and must be resolved.
No. Preserve the sample and check recipe, tension, material and splice history before changing a motion parameter.

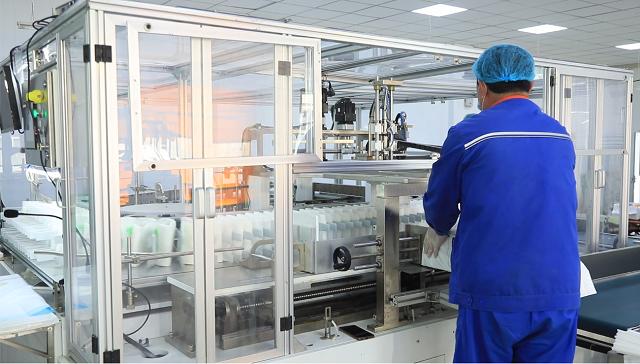

The original record says the stacker and packaging system are customer-defined. The final maintenance boundary must include the agreed downstream interface.
CLK350 maintenance becomes more effective when every event is linked to a product recipe, material batch, alarm and retained sample. HAINA can use that record during training and remote support, while the buyer keeps speed, quality and recovery decisions tied to the accepted configuration.
Automatic Adult Diaper Making Machine
|
Dimensions(L×W×H8) |
45m*10m*4m |
|
Design Speed: |
350ppm |
|
Stable Working Speed: |
250-300ppm |
|
Rejection Rate: |
≤4% |
|
Efficiency: |
≥85% |
|
Power Source: |
380V,50HZ |
|
Machine Capacity: |
400KW |
|
Air Pressure: |
0.6-0.8Mpa |
|
Machine Weight: |
95 tons |
This Adult Diaper Making Machine It can produce three size M/L/XL for adult, machine stable working speed 350pcs/min for M size.Product structure:Legcuff NW., Topsheet NW., ADL, Pad (Lower NW + fluff core+SAP mixed+Upper NW), PE film, Laminated NW., Frontal tape, PP tape, Cuff elastic, Leg elastic.

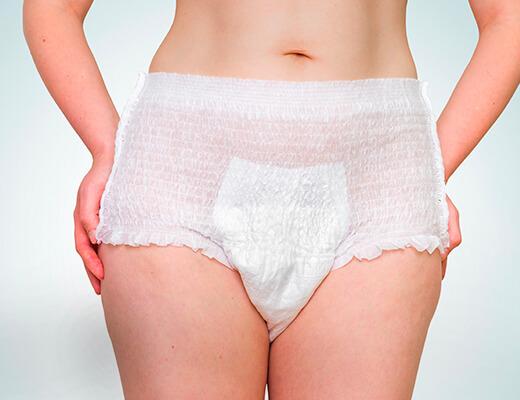

The Adult Diaper are commonly used for senior citizens,patients and mobility impairments.
Haina Automatic Adult Diaper machine has the characteristics of excellent performance obtains the general customer consistent high praise.

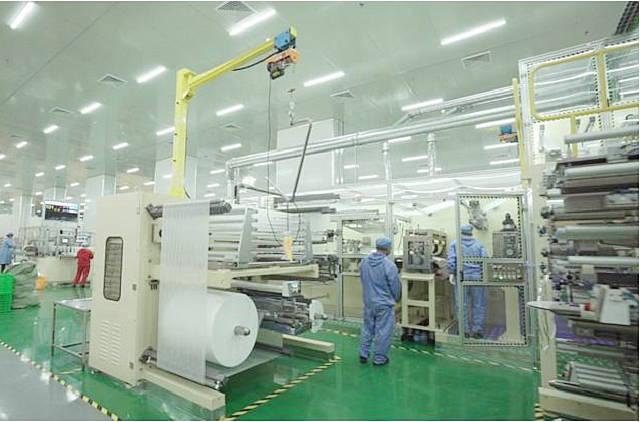

Full Automatic Adult Diaper Making Machine
| No. | Raw materials |
| 1 | Hydrophilic NW (Topsheet) |
| 2 | Hydrophobic NW (Legcuff) |
| 3 | Elastic for Legcuff |
| 4 | ADL |
| 5 | Fluff pulp |
| 6 | SAP |
| 7 | Upper tissue/NW |
| 8 | Lower tissue/NW |
| 9 | Pe film |
| 10 | Waist inner NW |
| 11 | Waist outer NW |
| 12 | Elastic for waist |
| 13 | Construction glue |
| 14 | Elastic glue |
| 15 | Wetness indicator glue |
